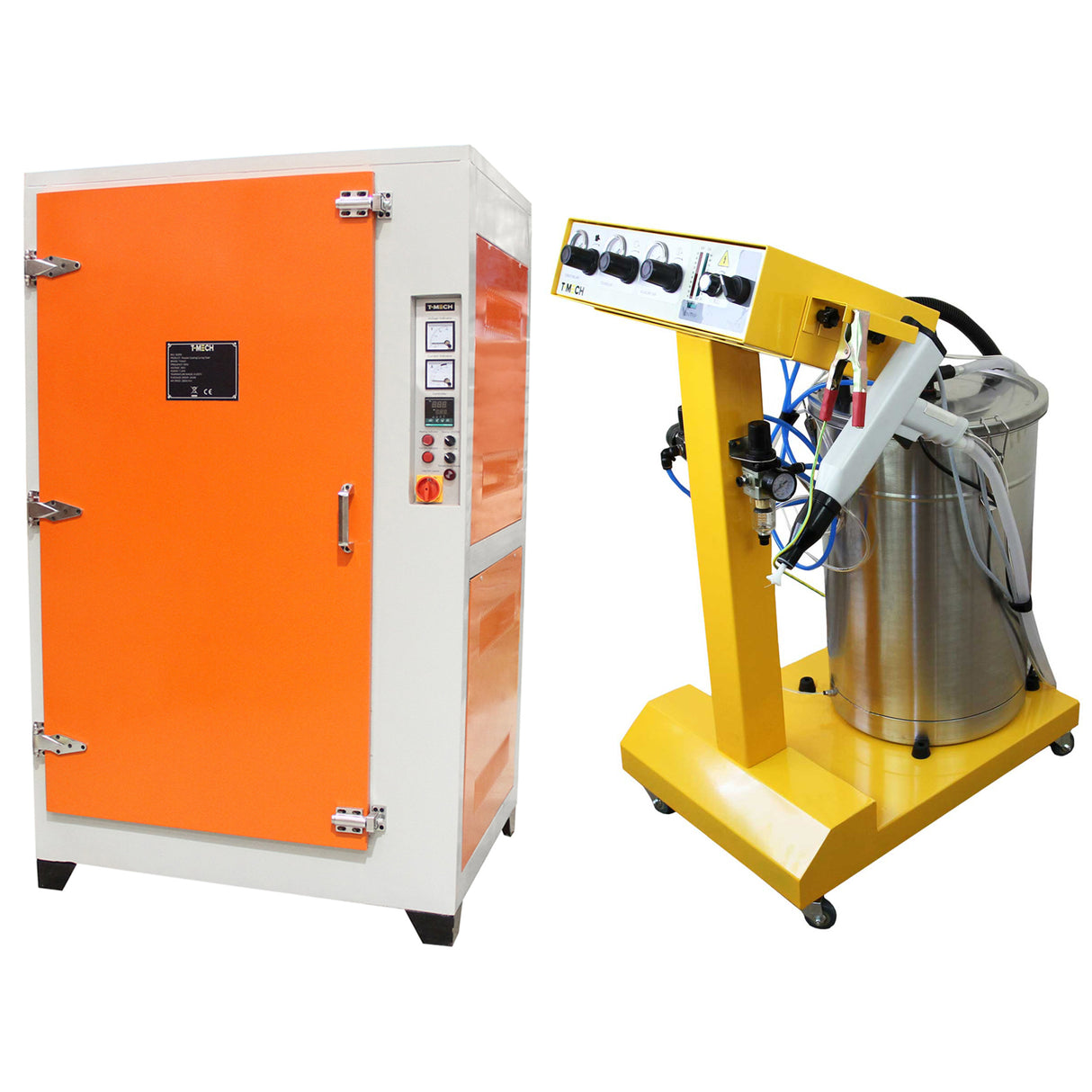

The ultimate powder coating bundle! Featuring the T-Mech 45L powder coating machine and curing oven!
This bundle is great for big projects - with the electrostatic powder coating machine having a large 45L powder capacity and the curing oven featuring 2 shelves with rails. Both are easy to use and come with a 12 month electrical warranty!
Powder coating is used to create a durable and high quality finish, which is great for tough machinery! Power coated products are more resistant to corrosion, fading and chipping so when done correctly it should last a very long time.
Powder coating is a dry finishing process using powder particles that are electrostatically charged and sprayed onto grounded metal work. After the coating is applied, you need to cure the parts using a powder coating curing oven.
Powder coating machines & ovens are used in a range of industries including auto parts, medical equipment, home appliances and much more!

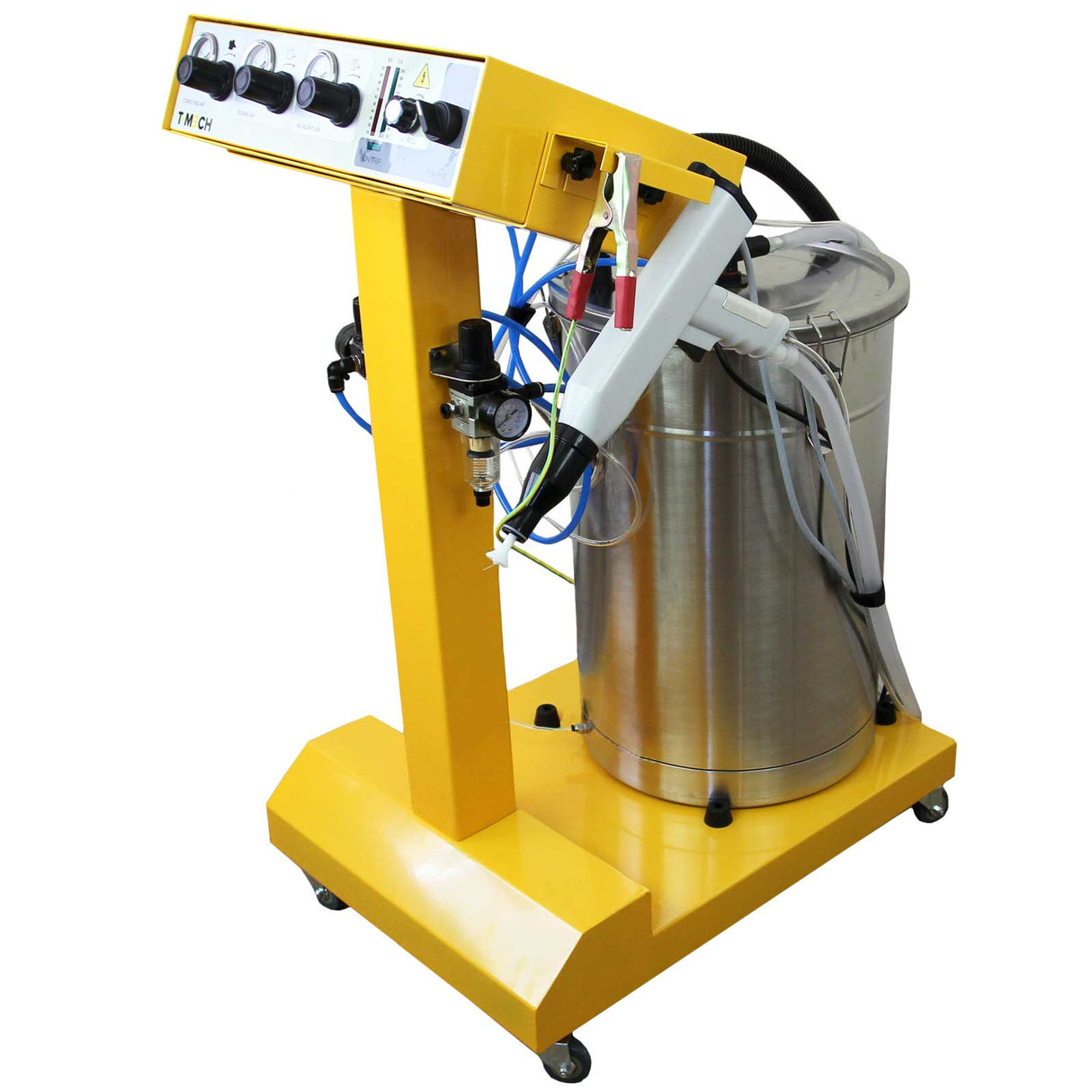

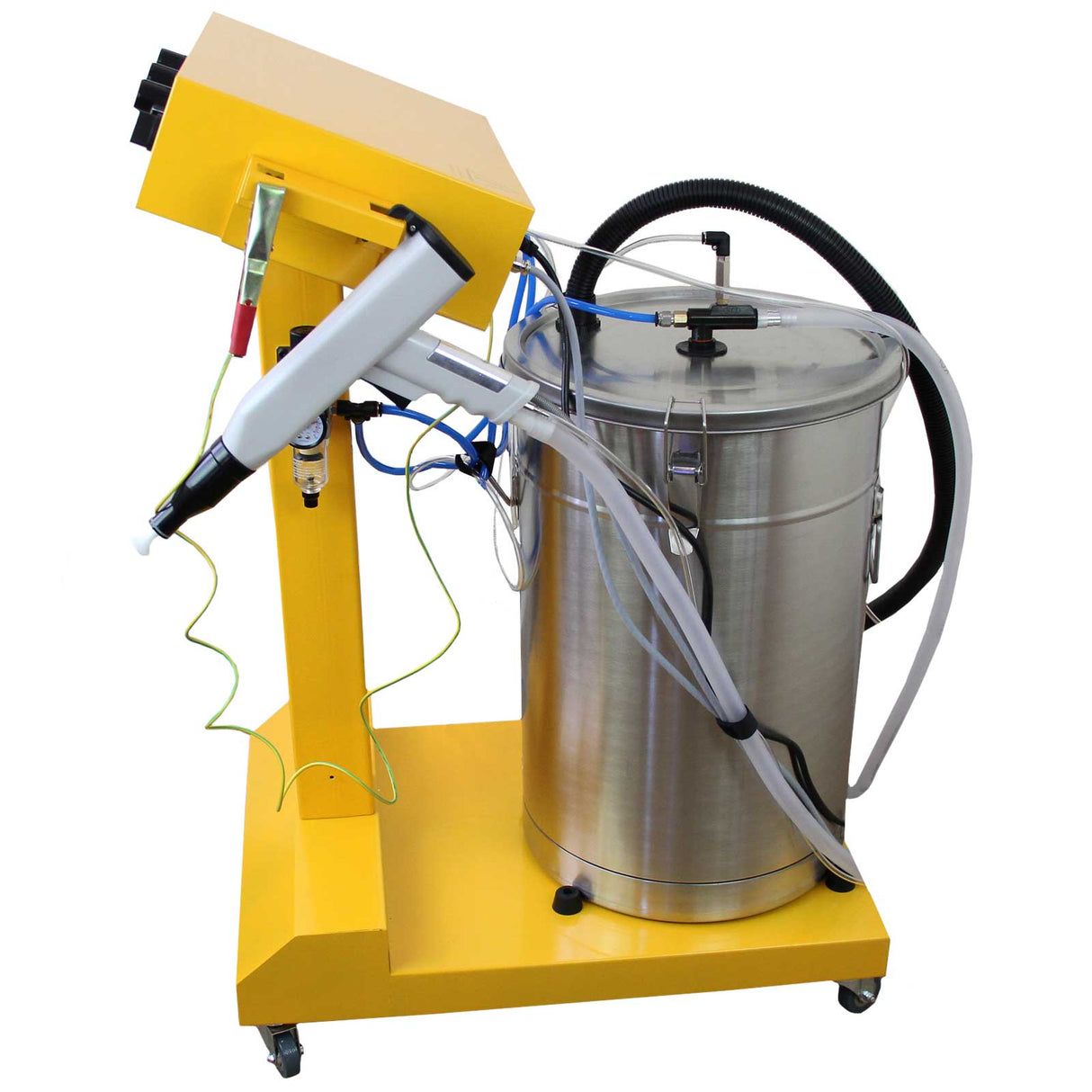

Powder Coating Machine
- Product features:
- Easy to navigate control panel
- Includes 1 spray gun
- Comes on wheels making it fully portable
- 12 month electrical warranty
- CE Approved
- Dimensions: 74cm (H) x 65cm (W) x 50cm (D)
Specifications:
- Input Power Voltage: 220V – 230V AC
- Frequency: 50Hz-60Hz
- Input Power: 40W
- Electromagnetic valve control power voltage: 24V DC
- Input Air Pressure: 0-0.6Mpa
- Output Air Pressure: 0-0.5Mpa
- Max. Air Consumption: 13.2m3/h
- Output Powder Volume: Max. 600g/min
- Output Powder Voltage: 0-100KV
- Output Current: 0-150uA
- Powder Hopper Volume: 45L
Electrical data
- Nominal input voltage: 200-240V
- Rated output voltage (to gun): 24V
- Rated output current (to gun): 1.2A
- Protection type: IP54
- Temperature range: 0 °C -+40 °C (+32 °F - +104 °F)
- Solenoid Valve Voltage: DC24V
- Gun output voltage: 0-100KV
- Gun output current: 0-150uA

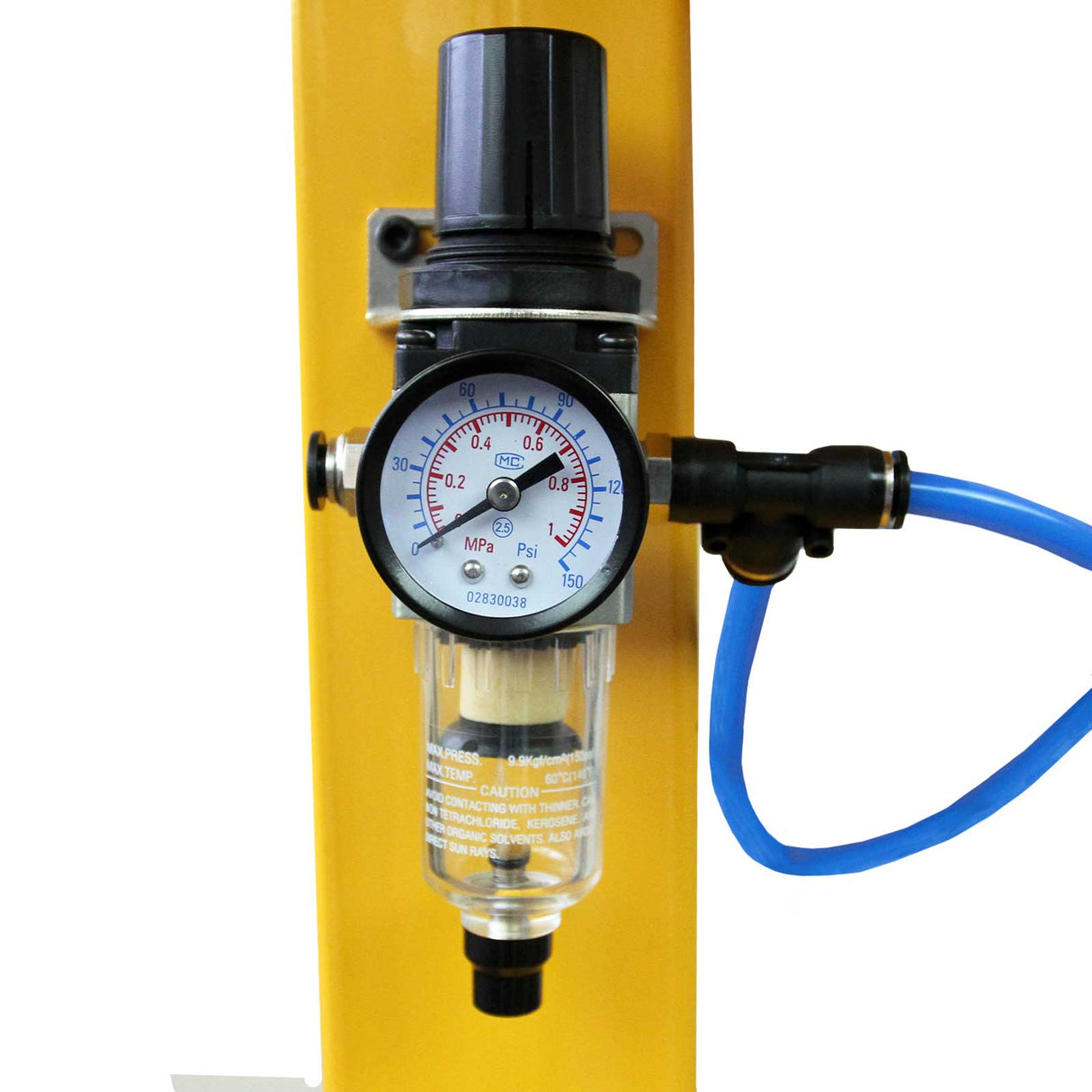

Pneumatical data
- Max.input pressure: 0.8Mpa
- Min.input pressure: 0.5Mpa
- Output pressure: 0.8Mpa
- Max.water vapour content of the compressed air: 1.3g/m3
- Max.oil vapour content of the compressed air: 0.1mg/m3
- Max.compressed air consumption: 13.2m/h（0.4MPa)

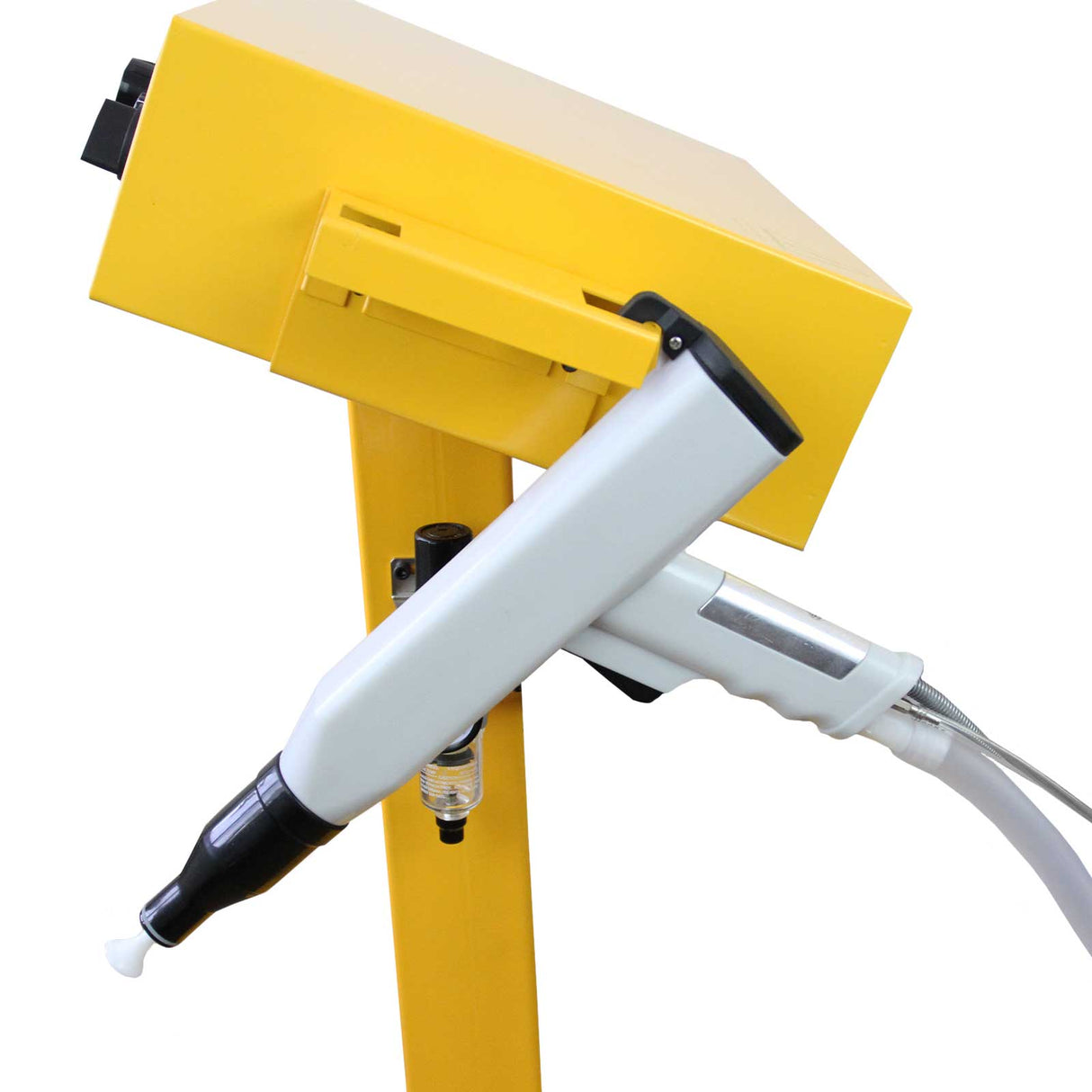

Gun Parameter
- Input: 24V
- Voltage Frequency: Around 25KHZ
- Input Current: 1.2A
- Output Voltage: 0~100KV DC
- Max.Output powder volume：Around 600G/MIN
- Gun cable: 6M
- Gun weight: 460G
- Container Capacity: 45L

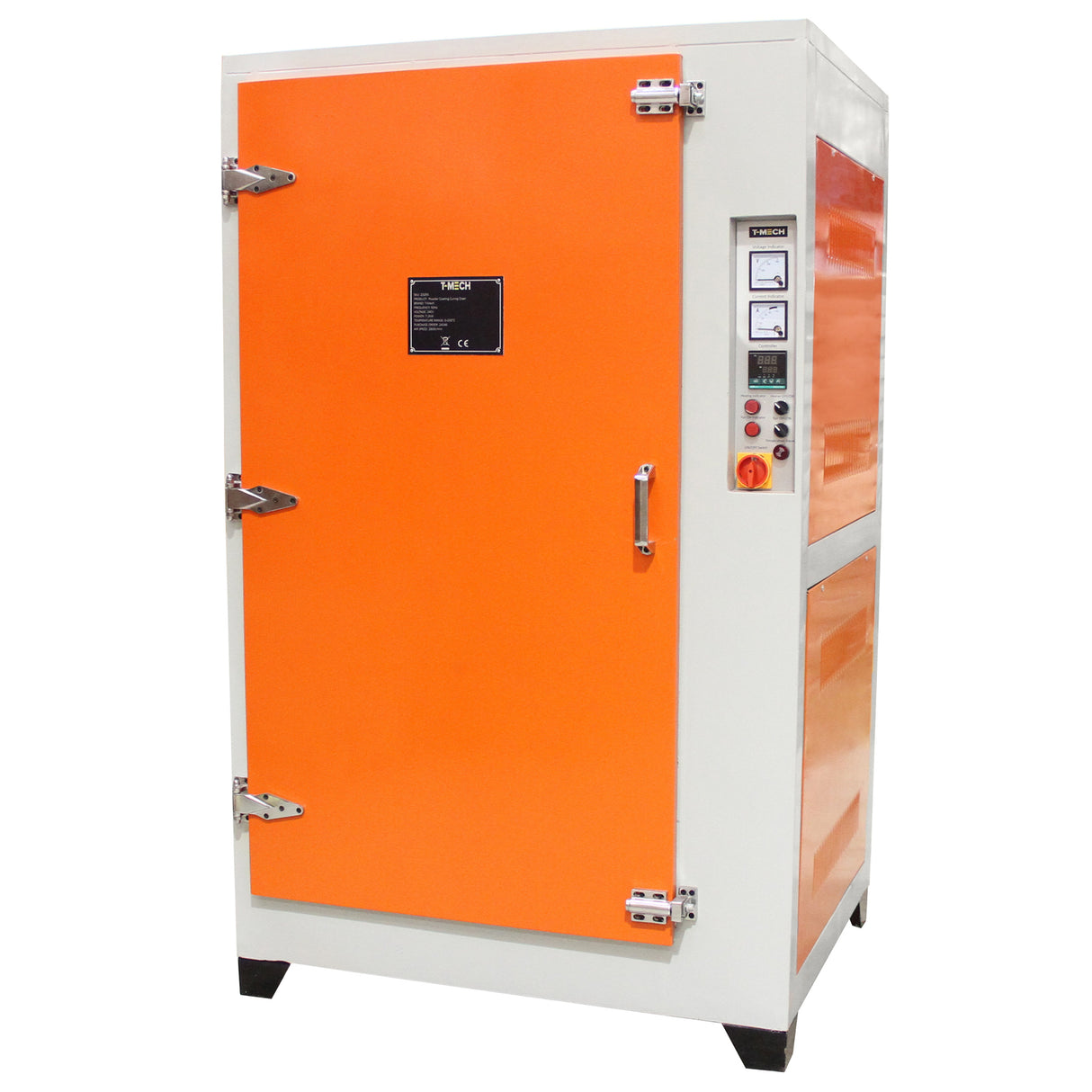

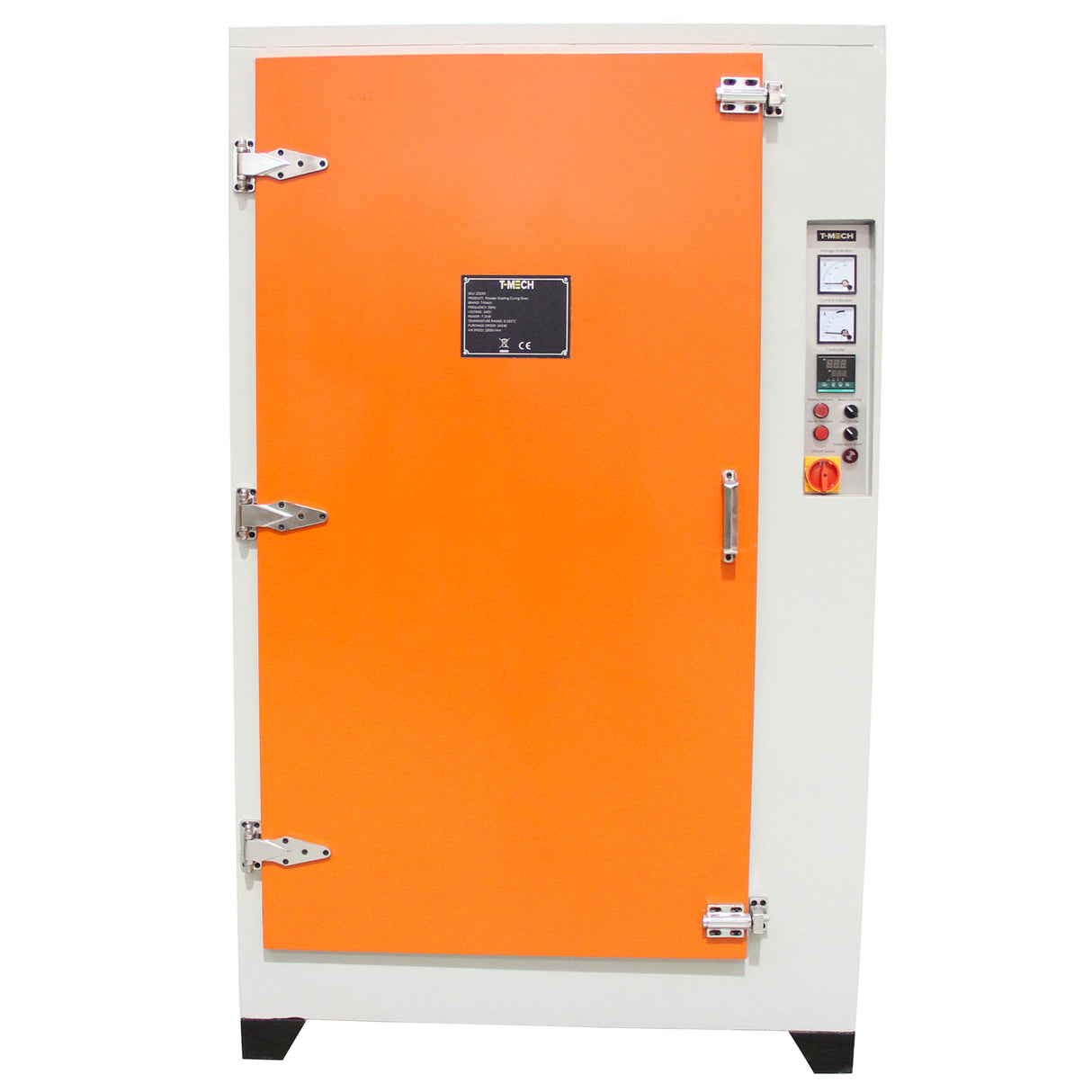

Powder Coating Curing Oven
- Powerful 7.2KW curing oven with double shelf
- New and improved Control Panel makes curing quick and easy
- Bolt Lock system for maximum safety
- This product can and should be wired to a 32AMP plug

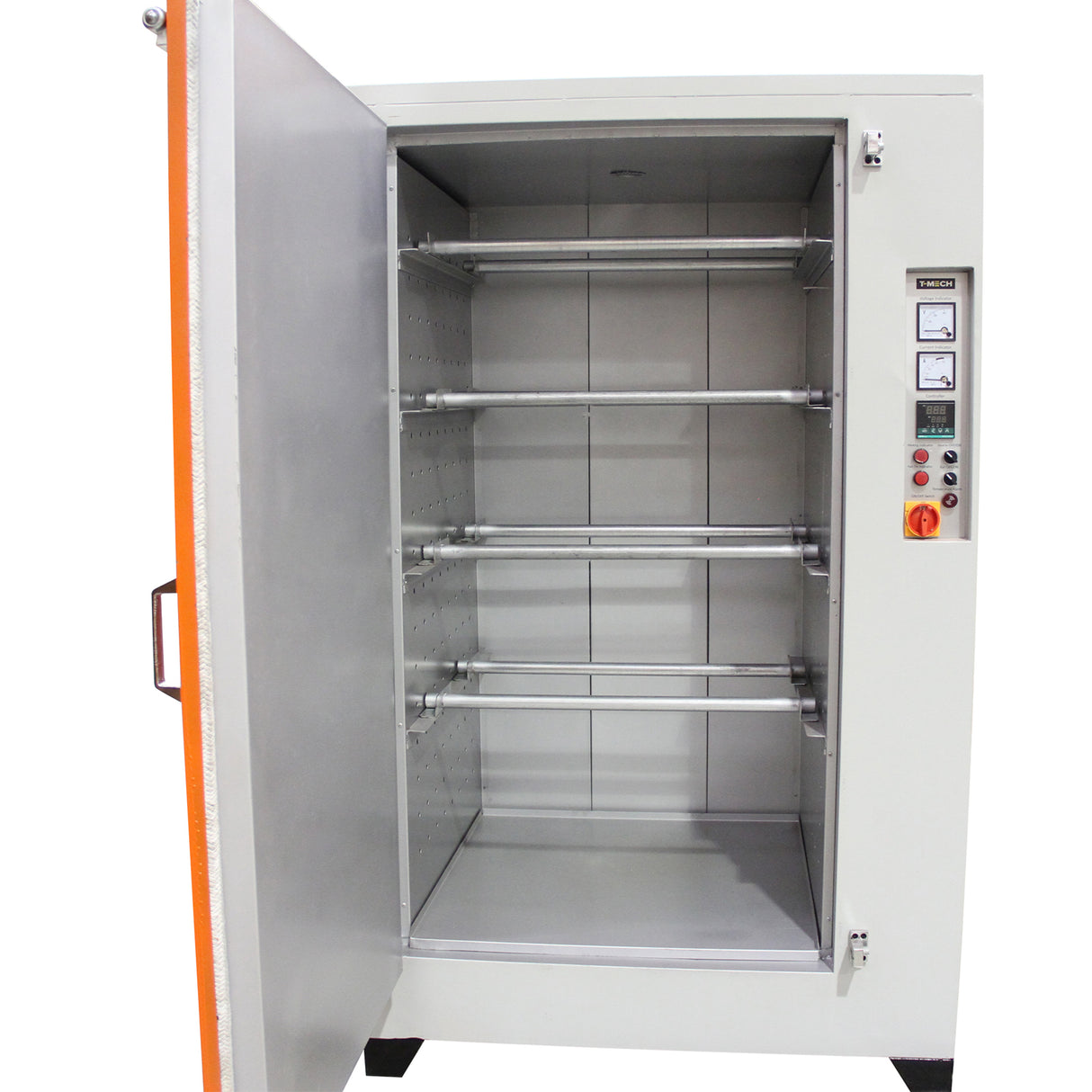

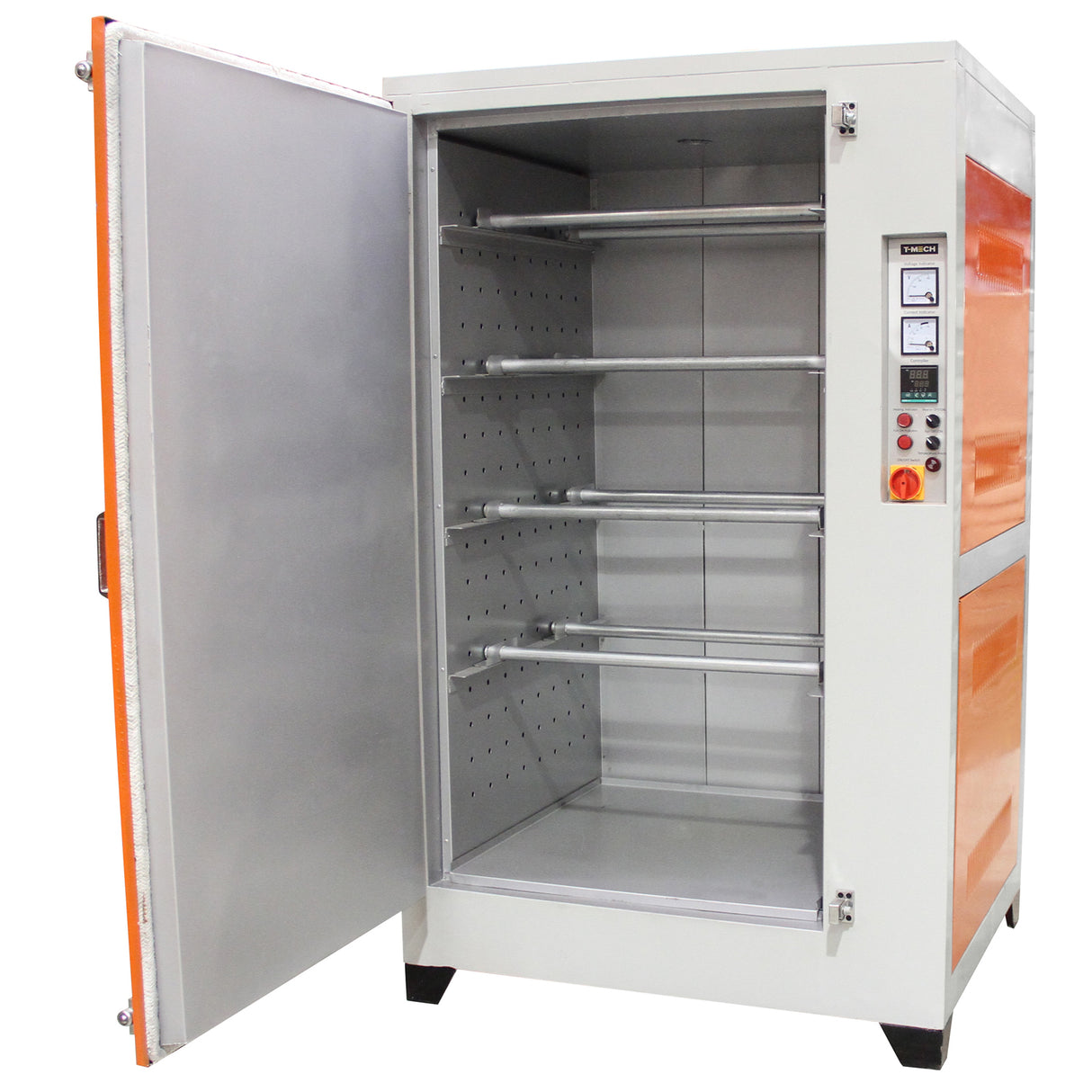

- Four shelves and two rails per shelf
- FREE 12 month electrical parts warranty
Specifications:
- Voltage: 230V / 50Hz Fan
- Power: 60W x 2
- Temperature Range: 0-250 C
- Air Speed: 2800rpm
- Power: 7.2KW
- Temperature Stability: +/-5 Insulated Plate: 7-8cm Insulation: High temperature silicon cotton
- Dimensions: 199cm (H) x 121.5cm (W) x 101.8cm (D)
- Internal Dimensions: 160cm (H) 84.5cm (W) x 84.5cm (D) Material: Steel, Iron, Plastic
Please be aware that the paintwork on this oven may have some slight cosmetic damage.
